产品特色

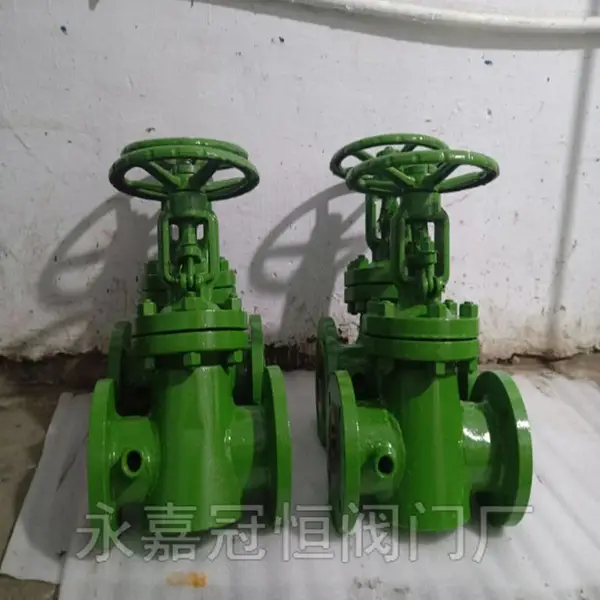

排渣阀PZ41H-40C DN300 大型手轮直通式排渣硬密封法兰闸阀2017直销
Sludge discharge valve PZ41H - 40 c 12 large handwheels cut-through discharge hard sealing flange gate 2017 direct selling
| 材质 | 铸钢 | 连接形式 | 法兰 | 公称通径 | 50（mm） |
| 适用介质 | 水 | 压力环境 | 常压 | 工作温度 | 常温 |
| 标准 | 国标 | 外形 | 中型 | 流动方向 | 双向 |
| 形态 | 柱塞式 | 零部件及配件 | 配件 | 驱动方式 | 手动 |
| 类型(通道位置) | 直通式 | 规格 | PN16-100 DN50-500 |
|
|
厂家直销手动排渣阀，北京耐磨手动排渣阀，铸钢耐磨排渣阀。PZ41H适用介质为：灰水混合物、渣水温合物 (渣水比 1：6，粒度<50mm)，公称压力 PNl.6～6.4MPa工作温度O～100℃的火力电、站水利排渣系统及水利工程的灰浆排放系统管路上。
主要用途 Application
排渣闸阀适用于公称压力 PNl.6～6.4MPa工作温度O～100℃的火力电、站水利排渣系统及水利工程的灰浆排放系统管路上，切断域接通管路中的介质：适用介质为：灰水混合物、渣水温合物 (渣水比 1：6，粒度<50mm)。
排渣阀特点与用途：
1.我们吸收消化了国内外***技术，并结合自身技术经验，设计了具有飞球特色的排渣系列阀门，其性能与使用寿命明显优于国内同类产品。
2.采用中法兰螺栓连接，支管两端为法兰连接结构。
3.启闭件采用半密封副强制密封，性能优良。
4.阀体内腔喷焊耐磨材料，密封副材料选用耐磨合金，耐磨性强、耐冲蚀、耐擦伤、摩擦力小、密封可靠。
5.阀体出口流道线型合理，不存渣，启闭灵活，不卡阻。
6.阀杆表面经调质及氮化处理，有良好的抗腐蚀性，抗擦伤性和耐磨性。
7.中大口径设置滚动轴承，启闭轻松。
排渣阀标准:
1、驱动方式:手轮、齿轮、电动、气动
2、连接型式：凹页、凹凸页
3、结构长度：JB97或按客户要求设计
4、连接法兰：SCH3406 JB/T79
Manufacturers selling manual discharge valve, manual of Beijing is the discharge valve, cast steel wear-resisting discharge valve. PZ41H applicable medium: water temperature, slag ash water mixture compound (1:6 slag water ratio, maximum particle size<50 mm), nominal pressure PNl. 6 O ~ ~ 6.4 MPa working temperature 100 ℃ of firepower electricity, the mortar of standing water discharge systems and water conservancy project emissions system piping.
Main purpose of Application
Discharge gate valve is suitable for the nominal pressure PNl. 6 O ~ ~ 6.4 MPa working temperature 100 ℃ of firepower electricity, the mortar of standing water discharge systems and water conservancy project emissions system piping, cut off the domain through medium in the pipeline: applicable medium: ash water mixture, waste water temperature compound (1:6 slag water ratio, maximum particle size<50 mm).
Sludge discharge valve features and use:
1. We have to absorb advanced technology at home and abroad, and combined with its own technology experience, designed with characteristic of fly ball discharge valve series, the performance and service life is better than the domestic similar products.
2. The use of flange bolt connection, pipe ends to the flange connection structure.
3. The opening and closing with half a vice force, good performance.
4. The valve body cavity spray welding wear-resisting material, seal material selection wear-resistant alloys, wear resistance, erosion resistance, abrasion resistance, low friction, reliable sealing.
5. Body export flow lines is reasonable, no sludge, opening and closing flexible, BuKa resistance.
6. The valve stem and tempering and nitriding treatment on the surface, has the good corrosion resistance, abrasion resistance and abrasion resistance.
7. Large size set the rolling bearing, easy opening and closing.
Standard discharge valve:
1, drive way: hand wheel, gear, electric, pneumatic
2, connection type: pp. Concave, concave and convex
3, the structure length: JB97 or design according to customer&＃39;s request
4, connecting flange: SCH3406 JB/T79
